Taihua JS11J Series Time Relay AC 12V-380V DC12V-220V

Short Description:

The JS11J Series Time Relay AC 12V-380V DC12V-220V is a reliable and versatile product suitable for a range of applications. Designed with a compact and user-friendly interface, this time relay is easy to use and install.One of the key features of the JS11J is its wide range of input voltages that make it adaptable to various types of equipment. With an input voltage of AC 12V-380V and DC 12V-220V, this time relay is perfect for a variety of industries and applications.The JS11J time relay also has high precision and stability, making it an effective tool for regulating time delays in industrial operations. With a delay range of 0.1 seconds to 99 hours, this time relay can be used in equipment that requires precise time delay control.In addition, the JS11J Series Time Relay has a stable performance, ensuring that it operates reliably in harsh environments. Its durable construction withstands vibrations and impact that may occur during usage, making it ideal for rugged industrial applications.Overall, the JS11J Series Time Relay AC 12V-380V DC12V-220V is a reliable and efficient product that provides precise time delay control. Its adaptability to different equipment, ease of use, and durability make it an excellent investment for a wide range of applications. Whether you are in the manufacturing, automotive, or electrical industry, this time relay is an excellent choice for regulating time delay and ensuring effective and efficient performance.


Product Detail

FAQ

Product Tags

Features

● Standard outline dimensions (96 × 86mm), convenient opening.
● Conform to many national or industry standards such as GB/T14048.5 withvhigh quality and high performance.
● Adopt integrated circuits as the main components with a wide delay range.
●Provided with many advantages such as long life, small size, light weight and so on. Widely used in various automatic control systems that require high precision and high reliability.

Model Number Structure

productFDH

(1) Time relay

(2) Design serial number

(3) Derived code J: Digital display

DN: special for mixer

Main technical parameter

Model

JS11J

JS11DN

Number of contacts

a group of imstantaneous

two groups of changeover

three pairs of normally open

Contact capacity

Ue/Ie:AC-15 AC220V/1A;

DC-13 DC220V/0.15A;Ith:3A

10A AC220V(resistance)

Display LED DISPLAY
Working power AC380V、220V、110V、36V、24V  50Hz;DC24V;AC/DC24~240V
Mode Power on delay
Repeat error ≤1%
Mechanical life 1×106 time
Electrical life 1×105 time
Installation Panel-type



Model Delay rang

JS11J

0.1s~9.9s、1s~99s、0.1m~9.9m、1m~99m、0.1h~9.9h、1h~99h、0.01s~9.99s、0.1s~99.9s、1s~999s、0.1m~99.9m、1m~999m、0.1h~99.9h、1h~999h、1s~9m59s、1m~9h59m、0.01s~99.99s、0.1s~999.9s、1s~9999s、10s~99990s、0.1m~999.9m、1m~9999m、0.1h~999.9h、1h~9999h、1s~99m59s、1m~99h59m
0.1s~99h、0.01s~999h、0.01s~99990h
JS11DN 0.1s~99.9s、1s~999s

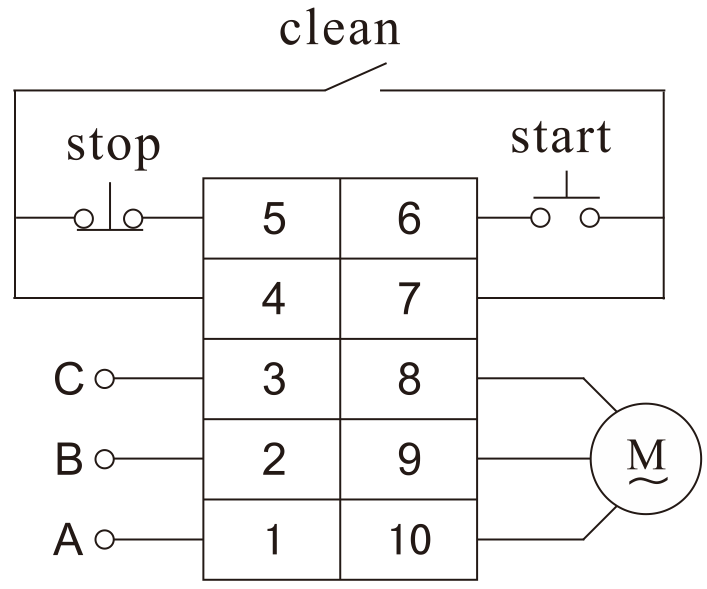

Wiring diagram

JS11J图片 1 JS11DN

图片 2



Outline and installation dimensions

productDFH
productDFH
productSDH

Outline dimensions diagram

Installation dimensions diagram

Application

productSDH
productFDH
productFDH
